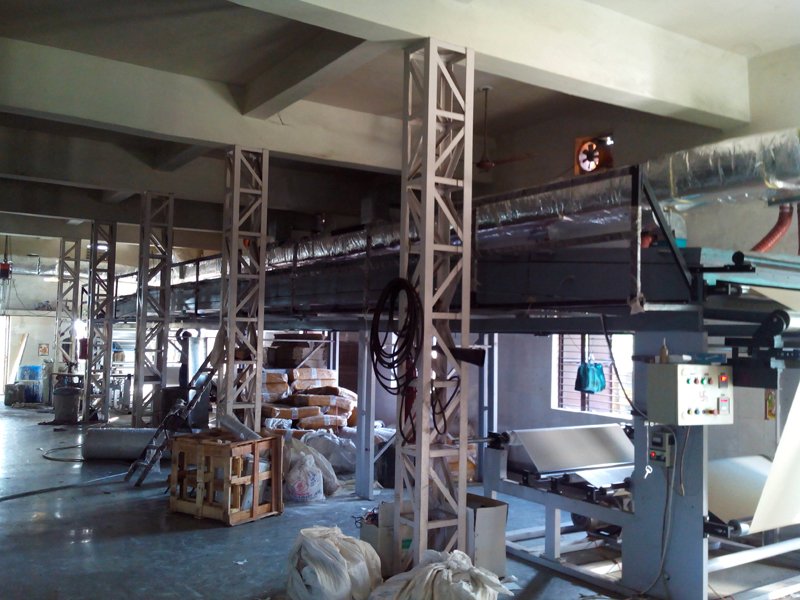

Self Adhesive Tape Coating Machine

ACCUWEB has developed special type Self Adhesive Tape Coating Machine.

Technical Specification

• 1 No : 300 mm dia main drum duly hard chrome plated & grinded.
• 1 No. Metering roller duly hard chrome plated & grinded.
• The above 2 rollers shall be made out of steel pipes having sufficient wall thickness.
• A sliding arrangement with a coating tray & width adjusting stopper , with 3 Nos. Aluminium rollers . All the above assemblies shall be mounted on the proper frame structure along with the base

Heating System

• Electrical / hot air

TECHNICAL SPECIFICATIONS

• Web Width : 800 � 2400mm
• Unwind / Rewind Dia. : 800 � 1200 mm
• Machine Speed : 150 / 200 M/ min
• Heat Source : Hot air generator / Thermic fluid / Radiator & blower
• Exhaust : 7.5 HP (Individual for each zone / programmable optional)
• Chilling Roll : 150 dia.
• Tension Control : For unwind & synchronized drive for coater, nip & positive drive
• Materials to be Coated : Polyester,BOPP,PVC,foil

Drying Tunnel

• Drying Tunnel : 50 Ft Length
• Drying Tunnel made out of M.S. Fabricated.
• The 50 Ft length tunnel divided in 5 parts of 10 Ft each.
• Tunnel have sufficient no. of 3� Dia Aluminum Rollers
• Web aligner 3 Nos. 3 X 0.5 HP = 1.5 HP Load
• Unwind with web guide and tension control
• Rewind with ac veriable drive
