Cantilever Slitting Rewinding Machinee

The ACCUSPLICE-5000 duplex shaft Slitter Rewinder is a Canti lever type which incorporates a range of superior design feature that ensure the highest possible quality for the final split roll Independent rewind tension control through non contact ultra sonic techniques for diameter measurement and unique core lock for differential slip at running speed. The design incorporate the three motor control system & unwind pneumatic brake with load cell feed brake Digital Edge/line guiding to achieve high speed correction.

UNWINDER

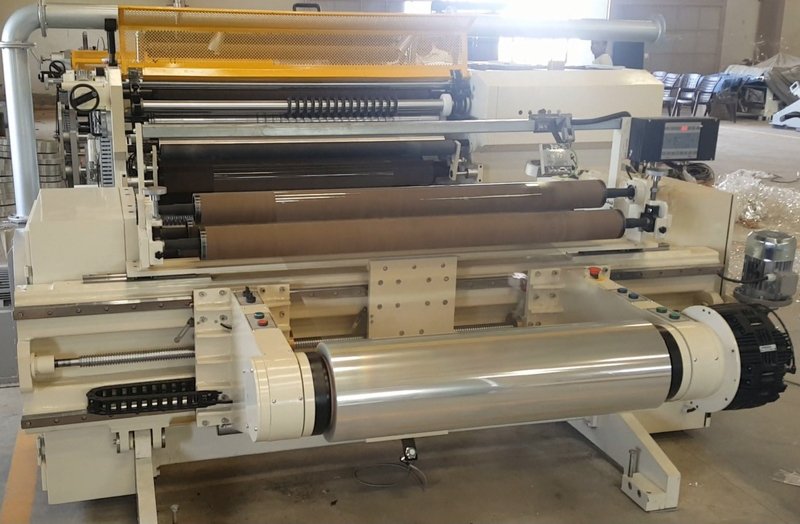

Shaftless type heavy duty Unwinder comlate with core facility of 76mm & 150mm Core, fitted with pneumatic brake and Load cell actuated latest line guide system.

SLITTING UNITS

Type of slitting: Razor in groove/circular rotary slitting system. One full width capacity grooved roller. Trim removal system: 2 HP blower with full width Pipe for trimming along with a trim Injector unit. Quick and easy system for change over from one Slitting mode to another and from one slit width to another.

REWINDER

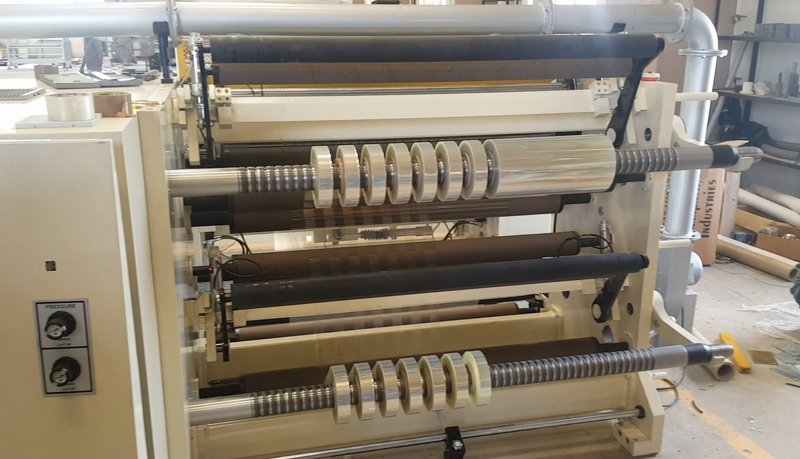

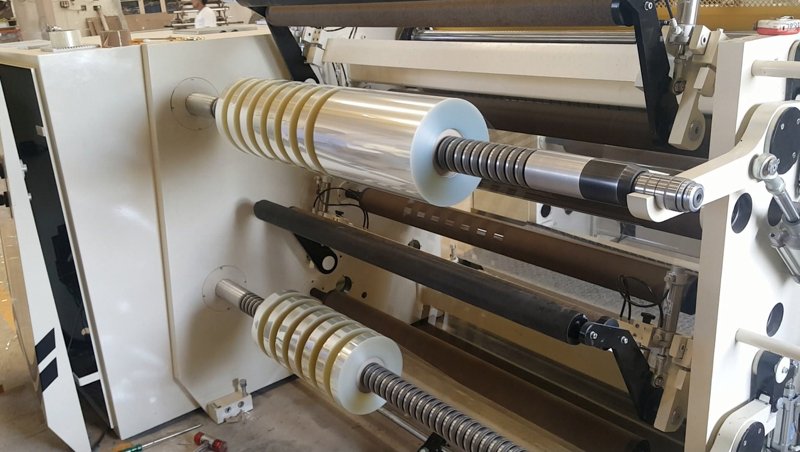

Type of Rewinding : Duplex Cantilever Differential Winding. with pneumatic pressure to maintain slip edge of rewind roll through digital E/P converter with indicator and Ultra-sonic sensor to maintain rewind dia Quick lock unit for rewinding \pneumatically controlled lay on roller operator friendly remote control panel provided at rewind for electrical and pneumatic system. 1 Nos. Common Servo Motor provided for both rewinder.

NIP UNIT

One full width capacity hard chrome plated steel roller of 150mm diameter. One full width capacity rubber roller of 150 mm diameter. Pressure is Pneumatically applied from the operation side of the machine and this unit is controlled by servo motor.

LASER CORE ALIGNMENTS

Assembly fitted on top of the rewind shaft to indicate the position of new core to get exact finish size on every roll change over.

TECHNICAL SPECIFICATION

Type of Machine	Cantilever Slitter Rewinder Machine
Type of Rewinding	Center Winding � Duplex shaft
Maximum Web Width	1350 / 1650 mm.
Minimum Slit� Width	50 mm (25mm Optional).
Max. Operating Machine Speed	300 / 500 meter per minutes.
Max. Design Speed	350/600 meter per minutes.
Material to be processed	PET / BOPP/POLYESTER/FOIL/PAPER/MATELISER
Unwind Reel Diameter Shaftless	1000 mm.
Rewind Reel Diameter	600 / 650 mm maximum.
Unwind /Rewind core ID	3” “at unwind or as per shall and 3” at Rewinding.
Supply voltage	440v 60 Hz +/- 10%
Motor specific. for Multi point drive For 1350mm W.W.	Unwind = PneumaticBrake�(Tension Control ) Nip���������� = �10�� HP A.C. Motor Rewind��� = 7. 5 HP ( Common Drive ) RPM������� = 1400� -� 3 - Phase, Voltage -� 440 V A.C.
Motor specific. for Multi point drive For 1650mm W.W.	Unwind = PneumaticBrake������������������������������� (Tension Control ) Nip�������� ��=� 15�� HP A.C. Motor Rewind��� = 10 HP ( Common Drive ) RPM������� = 1400� -� 3 - Phase, Voltage -� 440 V A.C.

Optional

• Manual laser core positioning system
• Pivoting type take off arms
• Statice eliminator
• Bowed/banana roller for wrinkle free web
